Massing model and Zygosity
From the case studied "Abedian school of architecture" I extract out some of the features to use as a logic to generate form for my massing, I use matrix grid to distribute the level of zygosity the result is 9 form with different level of concept containing in them the one that have lesser has low zygosity and the one that have more has high zygosity.
 |
| Conceptual and form diagram (Link to full resolution) |
 |
Massing model (Link to full resolution) |
 |
Medium zygosity as a subject for next development (Link to full resolution) |
After got a concept and brief form as a subject I developed further along with site analysis and location to insert the design of the building.And after that a plan and the model have been develop accordingly.
 |
Form Sketch (Link to full resolution) |
 |

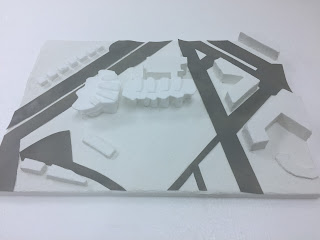

Site model and Massing |
 |
Ground floor plan (Link to full resolution) |
 |
First floor plan (Link to full resolution) |
As the case studied is an architect school so in the new building I design it to be an temporary dormitory with facility to provide accommodation for the architecture student that have to deal with an assignment and group project so it's more convenient to stay late at night.
 |
Second floor plan (Sleeping area) (Link to full resolution) |
 |
| Elevation (Link to full resolution) |
 |
| Section cut (Link to full resolution) |
 |
Explode Axonometry (Link to full resolution) |
 |
Atmospheric presentation (Link to full image) |
 |
Physical model of the building (Concrete, Wood and chipboard) (Link to full image) |
 |
(Link to full image) |
