Patr Vacharanukulkiet, Project 1.1 Didactic DNA, Patrick Donbeck

PROJECT 1

PHASE 1 - DIDACTIC DNA

In this project phase, student were assigned one case study building of an

institute and have do researches about the philosophy, idea, and design concept

of the building, decode the DNA of the specific building to compare with

other buildings designed by the same architect and the building designed by

other architect but of the similar style.

Case study building (first row)

Building - Eindhoven University of Technology-The Metaforum

Architect - Ector Hoogstad Architecten

Location - Eindhoven, Netherlands

Link to full resolution

The combined MSP Matrix layout show the comparison between the case study

building (first row) with other buildings (second and third row) from building

as a whole to parts and detail.



Link to full resolution
The first plate show the building as a whole in terms of circulation and
volume, the architect's idea of the stretched stairs and how it relate
to space of interaction, volume, and void.




Link to full resolution
The second plate explain the part of the building, how the checkerboard-roof and
transparent glass facade is made and its function dealing with natural light and
 flexibility of the structure.




Link to full resolution

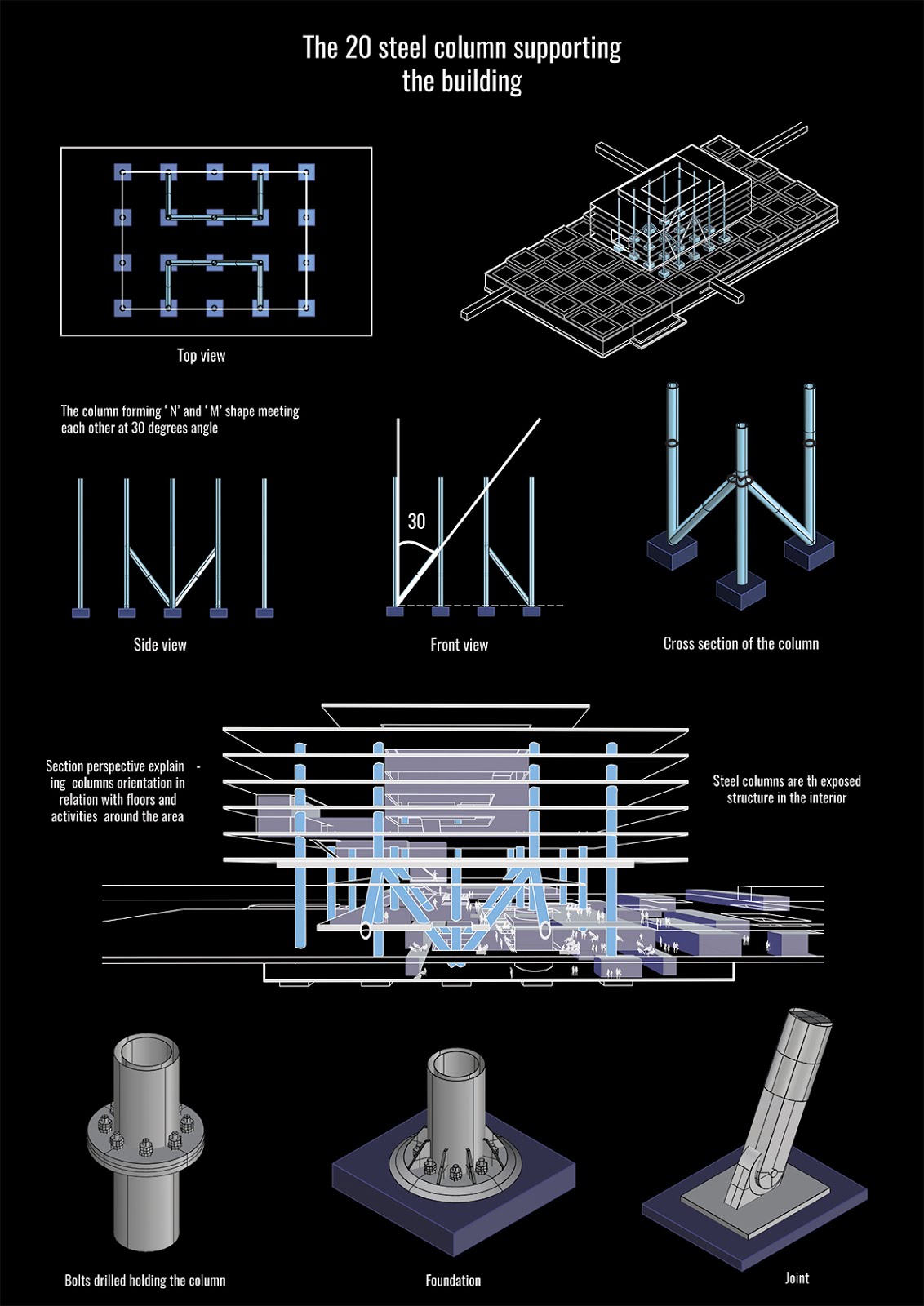

The third plate shows something more specific that is the steel column,
how they are arranged as an exposed structure in the interior and how
they are joined to one another.


Reference building design by the same architect (second row)




Building - Victor J. Koningsberger building Utrecht University
Architect - Ector Hoogstad architecten



Link to full resolution                                            Link to full resolution




Link to full resolution

These three plates of the second row show the similarities in design character and
functions of the building from whole to part and detail that deal with the idea of
circulation, pattern and transparency of facade and the columns presenting in quite
 similar graphic style respectively when compare with the first row.


Reference building designed by another architect (third row)




Building - BBC headquarter Scotland
Architect - David Chipperfield




Link to full resolution                                             Link to full resolution




Link to full resolution

The last three plates of the last row show the similarities in design character and
functions of the building that is designed by the other architect.
Here, the similar pattern of graphic representation is repeated it explain the
building from whole to part and detail that deal with the idea of circulation,
pattern and transparency of facade and the columns respectively when compare
 with the first row.
