FRATERNAL TWINS & VARIENTS
Project1.3
Opal Nattakitta Chuasiriphattana
Opal Nattakitta Chuasiriphattana
Carmen Torres
CASE STUDY : ALVAR AALTO HELSINKI'S UNIVERSITY OF TECHNOLOGY
IN THIS FINAL PHRASE OF THE CASE STUDY ANALYSIS PROJECT,
STUDENTS ARE EXPECTED TO DESIGN AN INSTITUTE
WHICH CONTAINS DNA FROM OUR CASE STUDY
DNA THAT I THOUGHT ARE RELEVANT :
GRID PATTERN LAYOUT (CIRCULATION)
STRUCTURAL FORM OF AUDITORIUM
ARTICULATION OF SKYLIGHT
THESE CHARACTERISTICS ARE THINGS I AIMED TO INCORPORATE INTO
THE DESIGN OF THE TWIN BUILDING INSTITUTE
RESEARCH
see full resolution
I'VE RESEARCHED ON HOW ALVAR AALTO APPLIED THESE CHARACTERISTIC
INTO HIS OTHER DESIGN, TO UNDERSTAND HIS TYPICAL ARCHITECTURE STYLE
GRID SPACE SUBDIVISION
SPIRAL CIRCULATION
FAN SHAPE LAYOUT
HIERARCHY OF BUILDINGS
PROGRAM
FUNCTIONALIST: FUNCTION OF BUILDING SHOULD BE VISIBLE FROM EXTERIOR
MASSING
LAYOUT MASSING
see full resolution
THREE PROPOSAL
WEB CIRCULATION
ASCENDING BUILDING
USING NEGATIVE SPACE
AUDITORIUM MASSING
see full resolution
INSPIRED FROM VARIATION OF SHAPE GENERATE FROM
PREVIOUS PHRASE'S TOY
CREATE INTERESTING ASSEMBLY SPACE
FINAL
COMBINING DIFFERENT ELEMENTS FROM EACH MASSING
CREATING THE DESIRE FORM WHICH CORRESPOND TO THE SELECTED SITE
(THE BUILDING CURVED ALONG THE SHAPE OF THE SHORE)
AXONOMETRY
see full resolution
SITE
see full resolution
KEMI IS A SMALL CITY IN FINLAND, WITH REASONABLE AMOUNT OF
CITIZEN BUT NO NEARBY PROPER EDUCATIONAL INSTITUTION
THEREFORE, AN OPENING TO A NEW INSTITUTE WOULD BE A GREAT IDEA
NOTICED THAT THE FORM ARE PURPOSELY CURVED ALONG THE
SHORE, AS ALVAR AALTO CONCERNED ABOUT
ELEMENTS OF SITE
PLAN
see full resolution
see full resolution

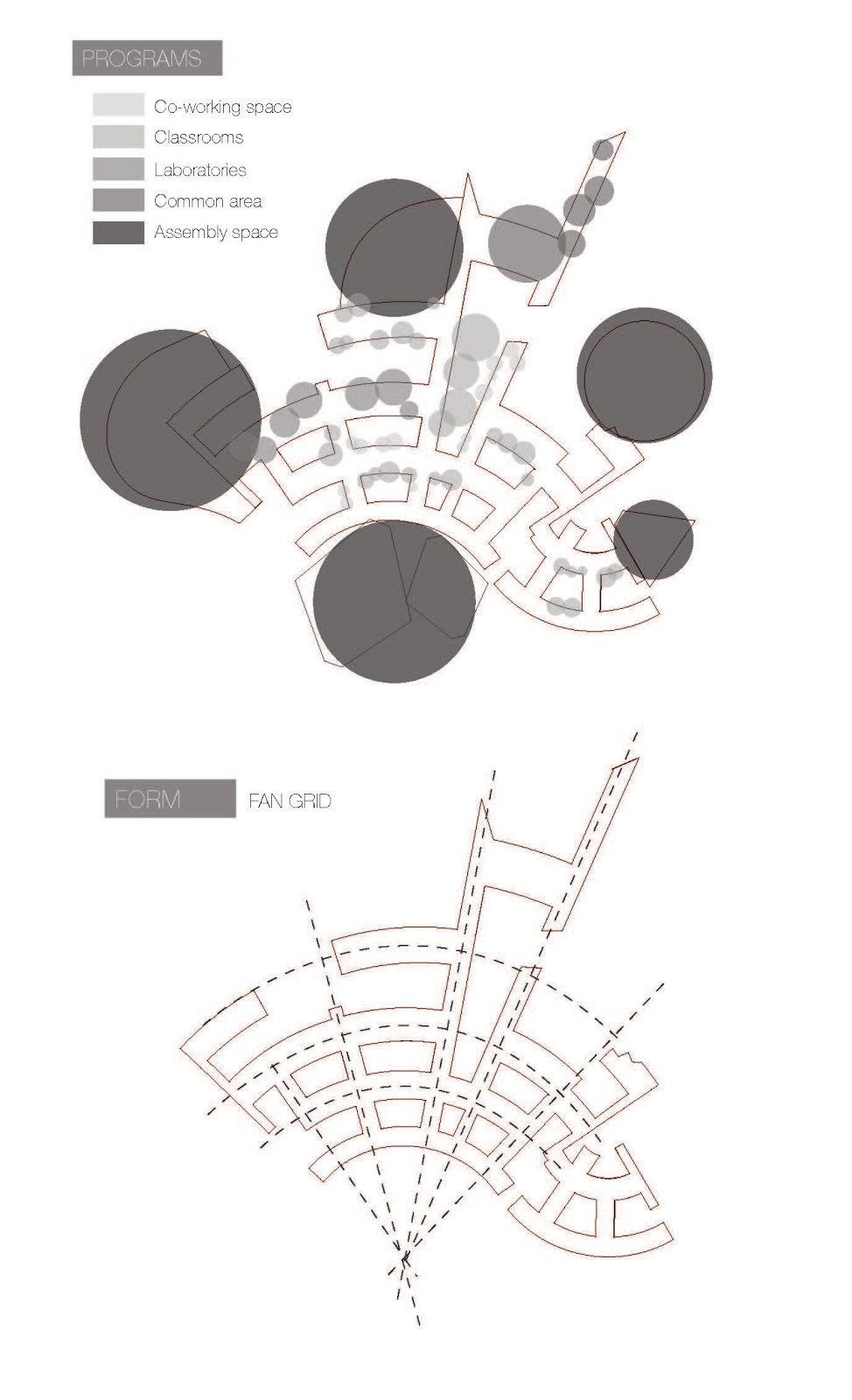

I COMBINED THE FAN SHAPE WITH GIRD PATTERN TO CREATE A FAN-GIRD BUILDING.
THE GIRD CIRCULATION ALLOWS EASY ACCESS TOWARD DIFFERENT
PARTS OF THE BUILDING. THEREFORE, I TRY TO MAINTAIN
THE SYSTEM AS THE BUILDING GOES UP.
EXPLODED
see full resolution
USING STRUCTURE FORM FROM PREVIOUS TOY PHRASE TO GENERATE
SHAPES FOR EACH ASSEMBLY SPACE
EXPERIMENTATION WITH DIFFERENT FORMS, TO FIND SUITATBLE
FOR EACH PROGRAMS
SECTION
ELEVATION
ATMOSPHERIC REPRESENTATION
PHYSICAL MODEL
see full resolution
